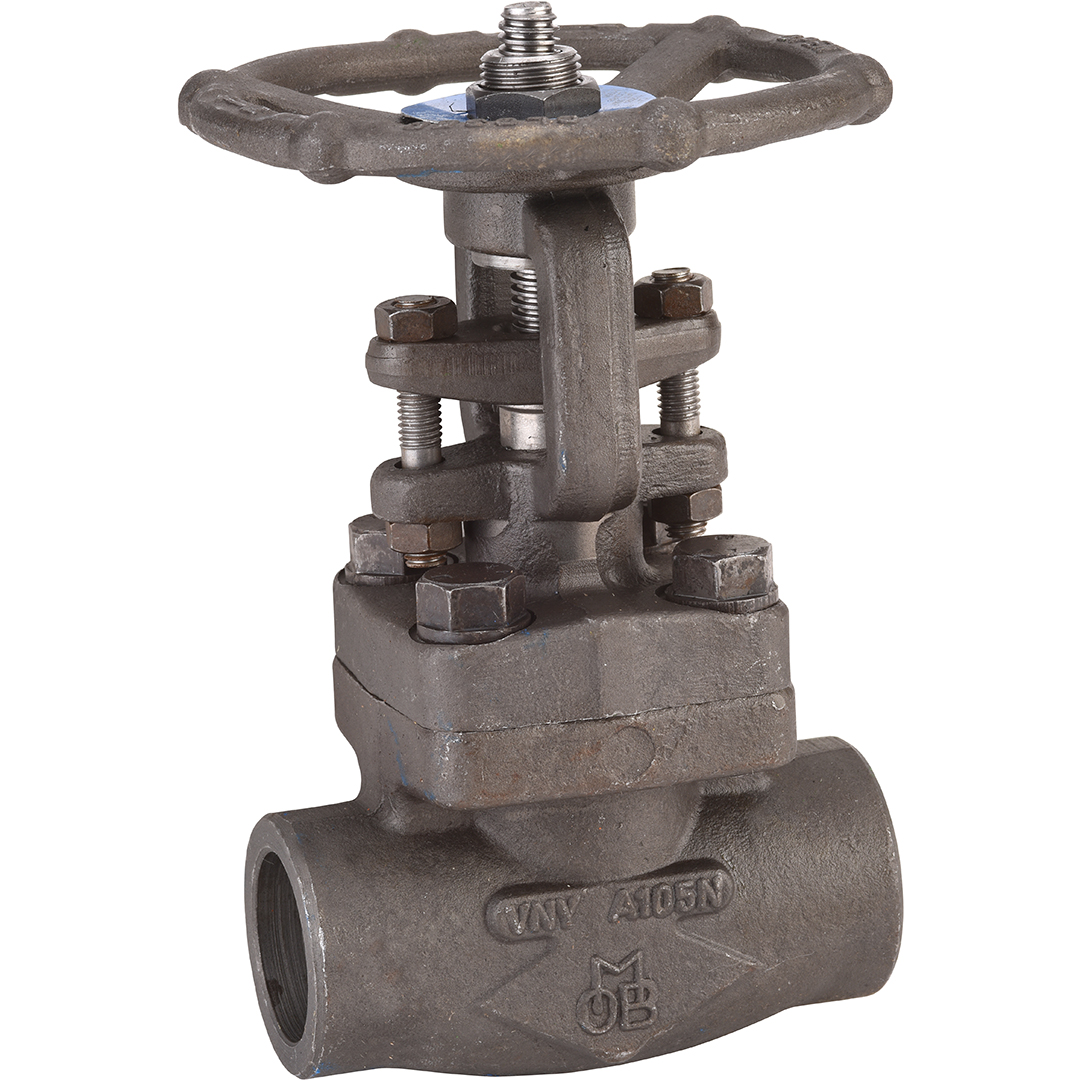

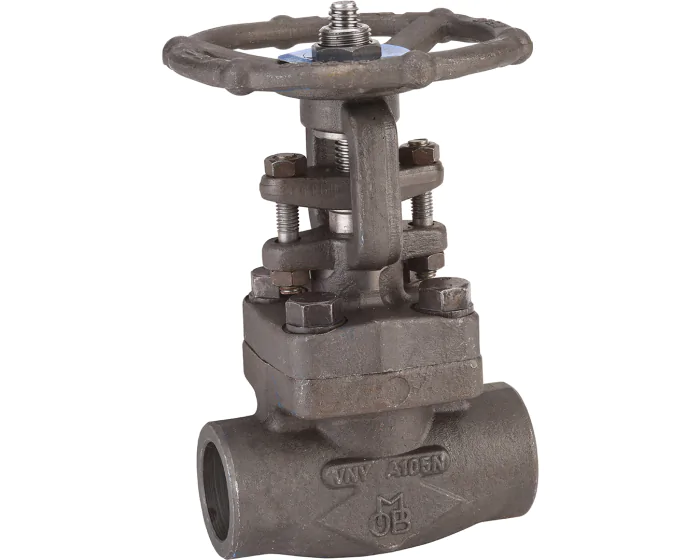

Name: Carbon steel A350LF2 gate valve 119 TRIM 12 800 lbs SW 1/2''
Brand: OMB
SKU: 7322
Price: 84.757142857143 EUR
Availability: InStock

Carbon steel A350LF2 gate valve 119 TRIM 12 800 lbs SW 1/2''

Carbon steel A350LF2 gate valve 119 TRIM 12 800 lbs SW 1/2''

€84.76 (excl. btw)

The 119 series gate valve, in forged steel A350LF2, welding SW, full bore, 1/2 stellite TRIM12 for oil, steam and high pressure industries.

In stock Subject prior to sales
Categories : Schuifafsluiters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
Bonnet material	Carbon steel ASTM A350 LF2
Construction standard	ISO 15761 - API 602 V8
CE risk category	III Module H
TRIM	TRIM 12
Brand	OMB
Tightness test standard	API 598
Bonnet	Bolted
Steam	Yes
Opening device	Handwheel
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel ASTM A479 type 316L
ATEX compatible	Yes
DN	DN15 - 1/2''
Face to Face (mm)	90.0
Sealing	Metal / Metal
Fluid	Hydrocarbons. gas
Kv (m³/h)	10
Body material	Carbon steel ASTM A350 LF2
Gate material	Stainless steel ASTM A182 316/316L
Bore	Standard
Packing gland	Yes
PS (bar)	136
Connections	Welding SW
Seats	Stainless steel ASTM A479 316 + Stellite Gr
TS max (°C)	425
TS min (°C)	-46
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
Type of stem	Rising
CE	Yes
Main product colour	Black

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7323	Welding SW Carbon steel ASTM A350 LF2 Standard DN15 - 1/2''	119015	S1007465	€84.76 (excl. btw)	add to cart
7324	Welding SW Carbon steel ASTM A350 LF2 Standard DN20 - 3/4''	119020	S1007466	€98.07 (excl. btw)	add to cart
7325	Welding SW Carbon steel ASTM A350 LF2 Standard DN25 - 1''	119025	S1007467	€185.79 (excl. btw)	add to cart
7326	Welding SW Carbon steel ASTM A350 LF2 Standard DN40 - 1''1/2	119040	S1007468	€320.40 (excl. btw)	add to cart
7327	Welding SW Carbon steel ASTM A350 LF2 Standard DN50 - 2''	119050	S1007469	€584.47 (excl. btw)	add to cart
